Marina Bay
Sands Hotel

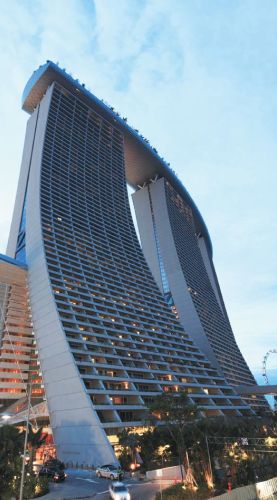

A resort built as Singapore's future growth engine, Marina Bay Sands Hotel is not only an icon of Singapore's flourishing but also a landmark of our times symbolizing architectural science in the 21st century.
-
Location
Singapore
-
Completion
DateMarch 2010
-
Client
Las Vegas Sands Group
-
Construction
Overview3 buildings / 57 floors,
2,561 rooms -
Scale
302,172㎡
Miracle of 21st Century Architecture
Miracle
-
-
MiracleMarina Bay Sands, the Miracle Hotel
A masterpiece of imagination, high technology, and best construction capabilities
-
World Class Proven in Numbers
-
Hotel Height
206m
-
Scale
302,172㎡
-
Hotel Inclination(10 times the Leaning Tower of Pisa)
52°
-
Number of Hotel Rooms
2,561
-
Skypark
Capacity
Approximately
3,900 people -
Skypark Scale(Spans roughly
two soccer fields)
12,408㎡

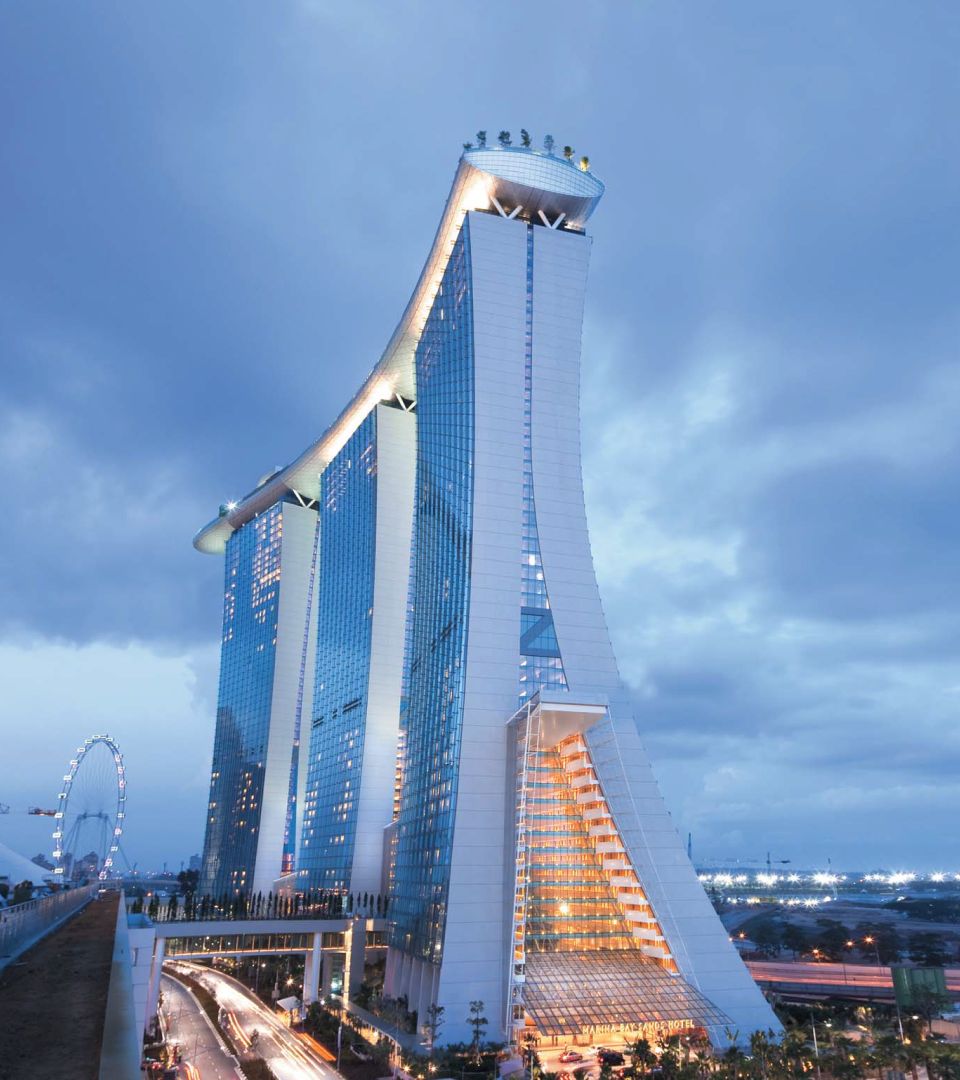

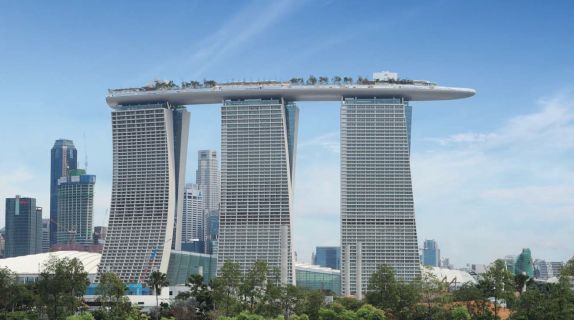

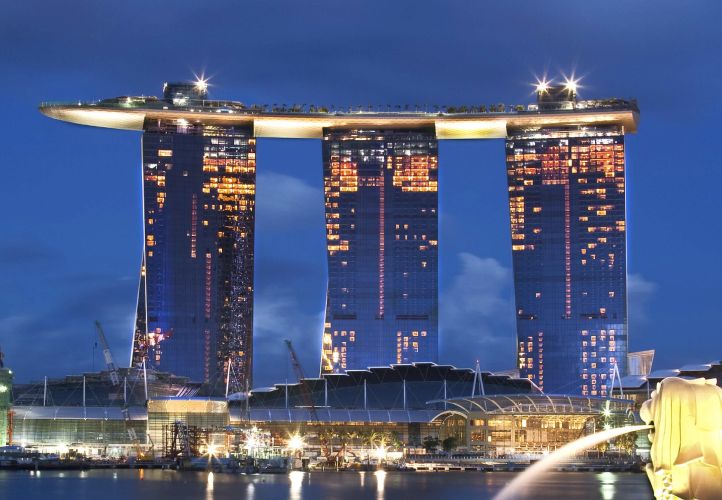

Singapore Marina Bay Sands Hotel called ‘Miracle of 21st Century Architecture’
A miraculous building with urban glittering skyscrapers and the sea. With three towers connected as one and a swimming pool that captures the sky on top, Marina Bay Sands Hotel is a masterpiece created by Ssangyong E&C’s challenge.
A large-scale complex resort development project promoted by Singapore and an architectural miracle of the 21st Century drawing international acclaim. Beyond a simple resort, this space turns imagination into reality.
SkyPark at 200 Meters

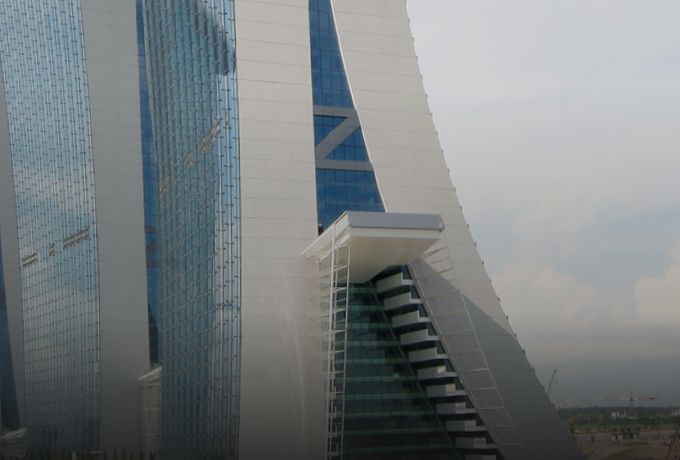

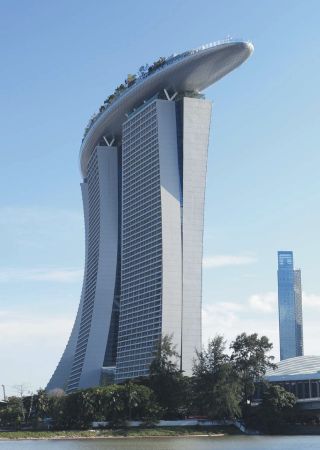

10 Times the Tilt of the Leaning Tower of Pisa
Marina Bay Sands Hotel is a miraculous building that leans up to 52°. This was technically impossible, about 10 times the Leaning Tower of Pisa.
To ensure stability from construction to completion, creative methods called post-tensioning and temporary bracing were applied, successfully overcoming the difficulties.
Dramatically Tilted

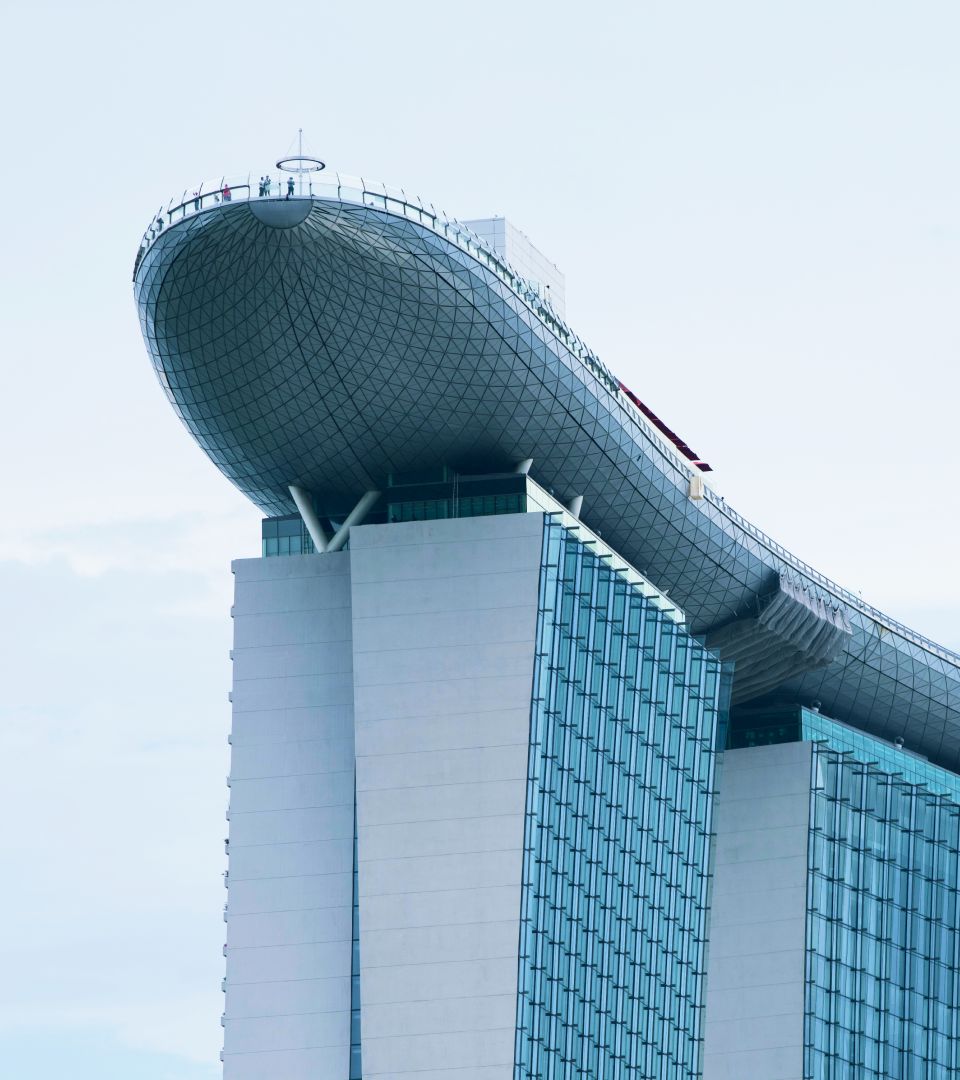

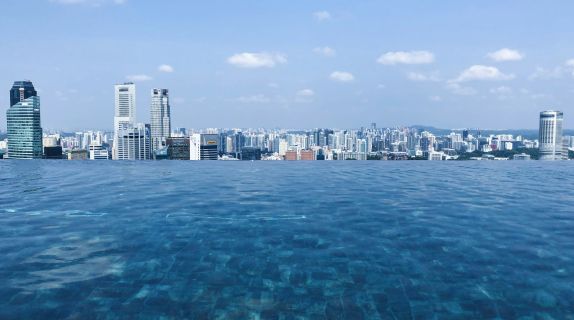

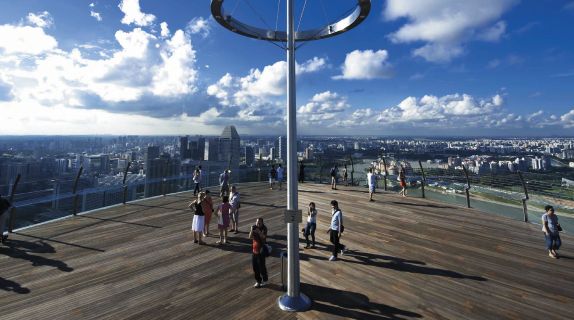

Swimming pool and sky park 200m above the ground

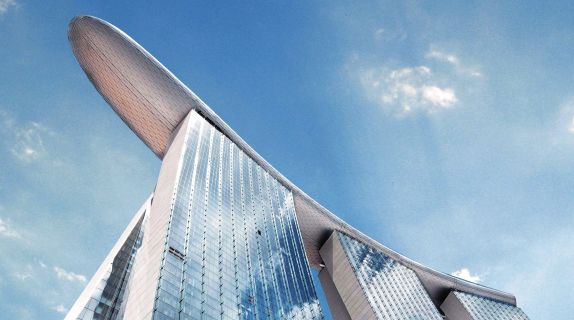

Marina Bay Sands Hotel includes a giant ship-shaped 'Sky Park' connecting the upper parts of three buildings.
Housing a pool, observatory, garden, trail, and restaurants, Sky Park is 20m taller than the Eiffel Tower (320m), spans two soccer fields (12,408㎡), and weighs over 60,000 tons—equal to 40,000 midsize cars.
New Challenge in Architectural Engineering
Donut and Peanut-shaped D-Walls (diameter 100m and 75m) support 3 underground floors without Struts, enabling large space and faster construction.
Lift installed early by blocking shaft with deck at mid-construction stage, allowing extra lifting and reducing construction time.

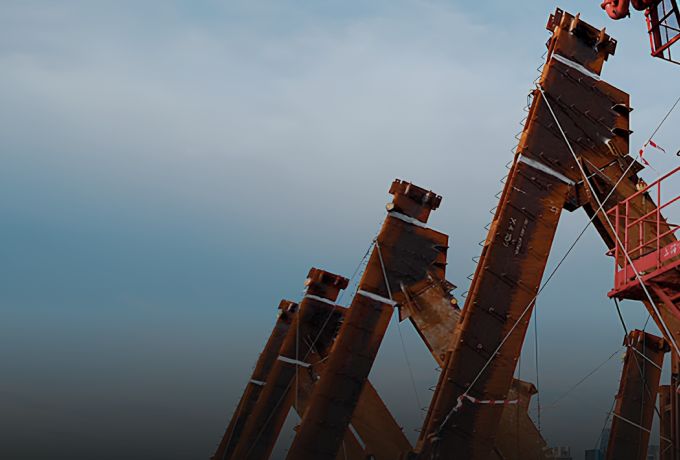

Post Tension added floor by floor to resist cantilever loads until full integration with the 23F transfer truss.

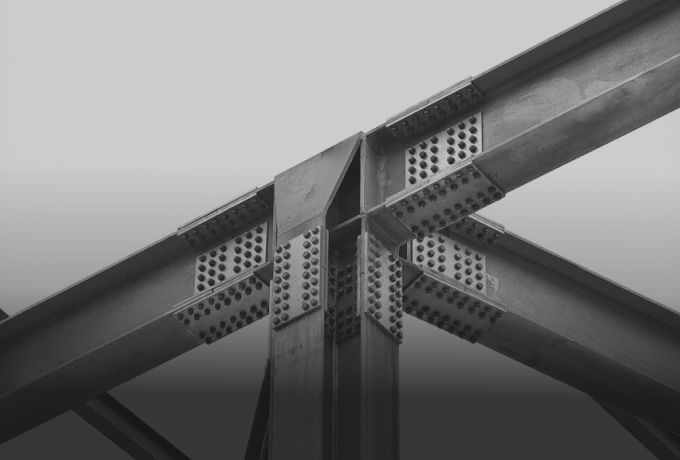

Three-tier steel struts (8F, 14F, 20F) supported Maximum
1,050 tons each during slope construction.

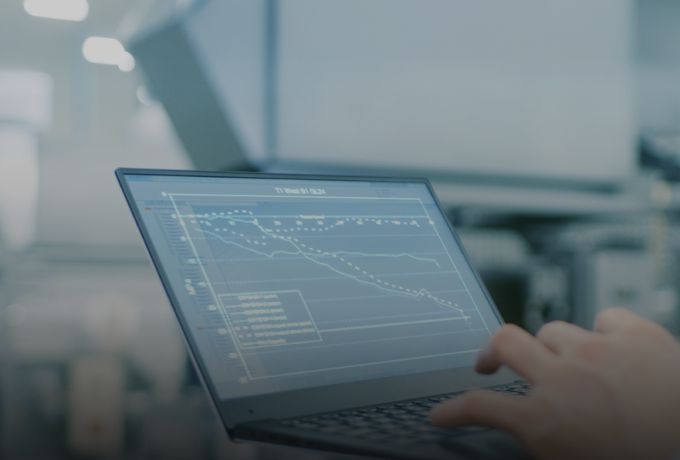

Monitoring System Building Quality Management Method
Real-time monitoring controlled displacement and deflection within design limits; auto SMS alerts activated at risk level.
23F embedded transfer truss distributed loads (60:40) between sloped (52°) and vertical towers, securing structural unity.

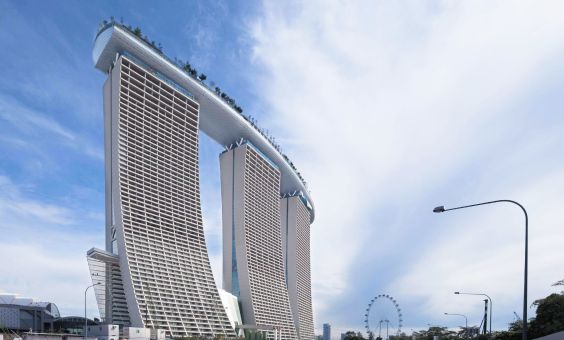

Ssangyong E&C's awards draw international acclaim
-
2012
Winner of Singapore Government BCA Construction Award (Platinum/Gold)
-
2010
Winner of Overseas Construction Grand Prize
-
2010
Winner of Korea Civil Engineering and Construction Technology Award (Grand Prize)
-
2010
Korea Overseas Construction Awards (Grand Prize)
-
2010
BCA Award (Green Mark- Gold)
